Package:
Yes
Model Number:
UN90LCD
Brand Name:
BMTomahawk
Compatible Brand:
APPLE
Voltage:
OTHER
Compatible 1:
For Acer, For ASUS, For Compaq, For Dell, For Fujitsu, For Gateway
Compatible 2:
For HP, For Lenovo, For Thinkpad, For Samsung, For Sony, For Toshiba,
Plug Type :
EU,UK,US
Input Voltage :
AC 100-240V 1.8A(50-60HZ)
Working principle:
Automatic matching by DC terminals
DC Tip:
( M1-M12 ) 12pcs
Type:
LCD Third Generation Smart
USB Output:
5.1V 2.4A
LCD Third Generation Smart Multifunctional Universal Power Supply Home or Car Charger Laptop Adapter 90W with USB2.4A for Phone
LCD Third Generation Smart Multifunctional Universal Power Supply Home or Car Charger Laptop Adapter 90W with USB2.4A for Mobile Phone/tablet/MP5
When driving tour using car cigarette lighter interface for your notebook / tablet / smartphone / Mp3 provide power.
A universal power supply, solve the charging needs of your laptop / tablet / phone / Mp3 and other equipment.
Universal power adapter to fit 90% of laptops of different brands, using a wide range.

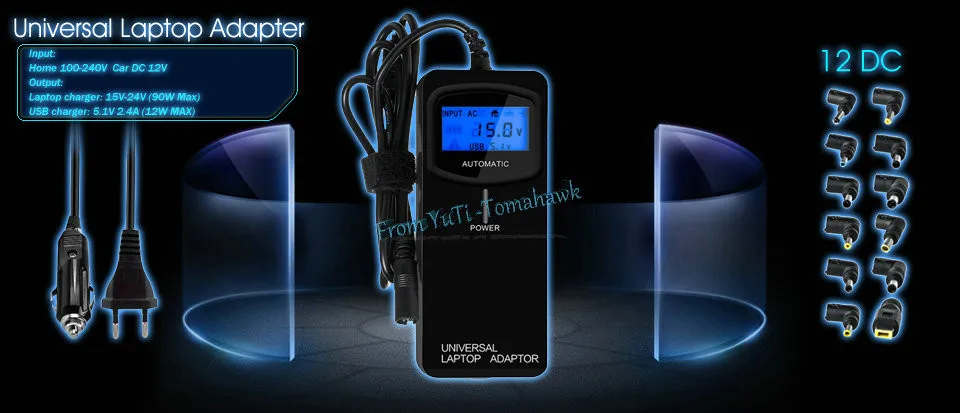

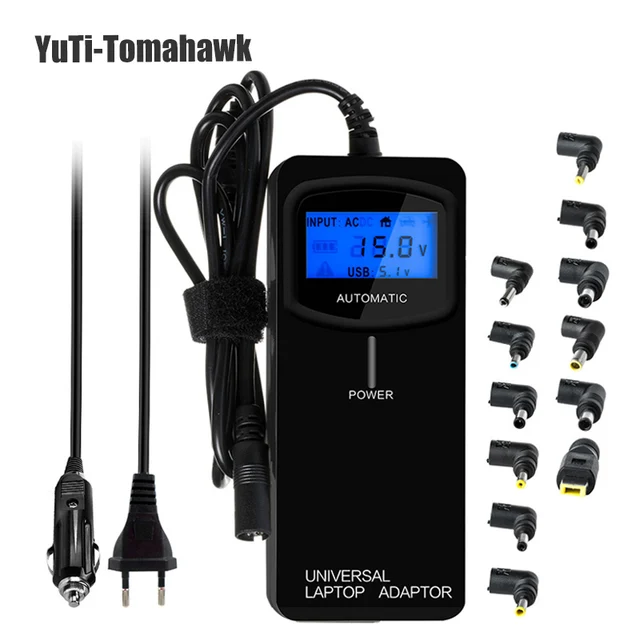

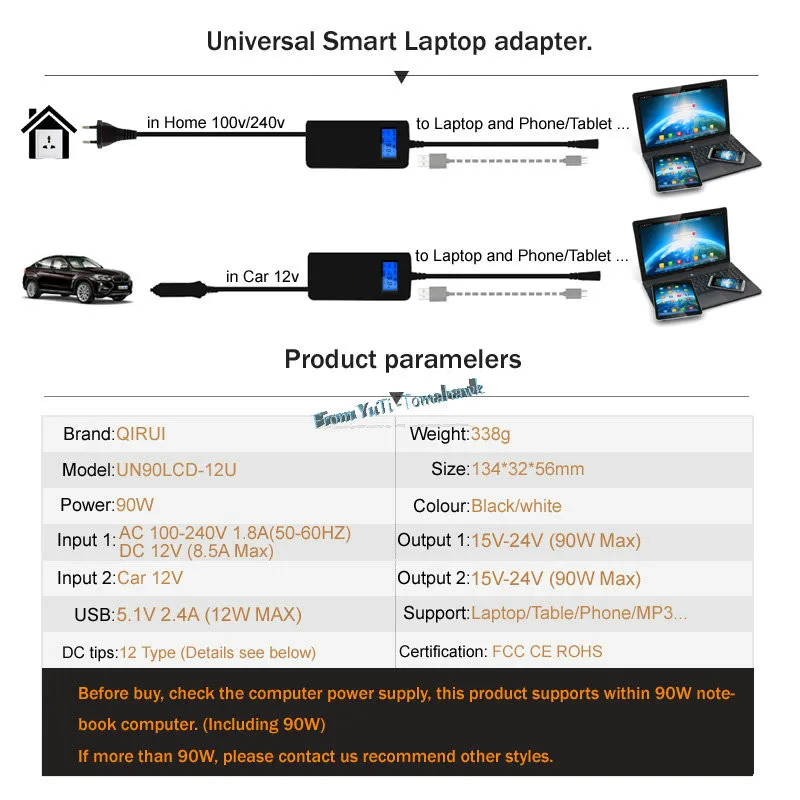

Name: 90W Universal Laptop Adapter with LED Display AUTO for Home and Car Use
Model: UN90LCD
Product Description
Input Voltage: AC 100-240V 1.8A(50-60HZ) DC 12V (8.5A Max)
Output voltage (Set Voltage):
Laptop charger: 15V-24V (90W Max)
USB charger: 5.1V 2.4A (12W MAX)

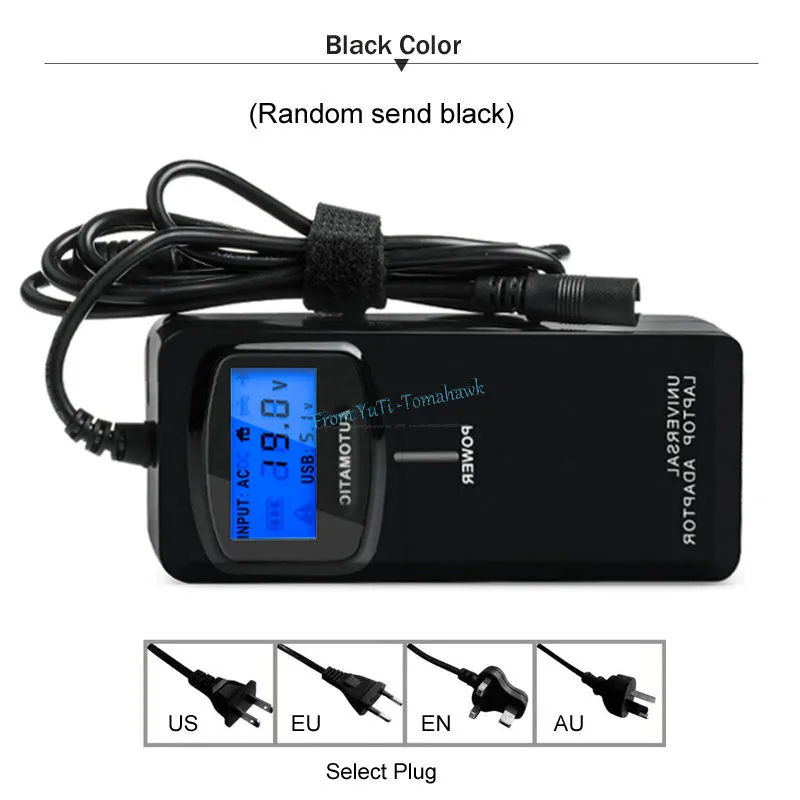

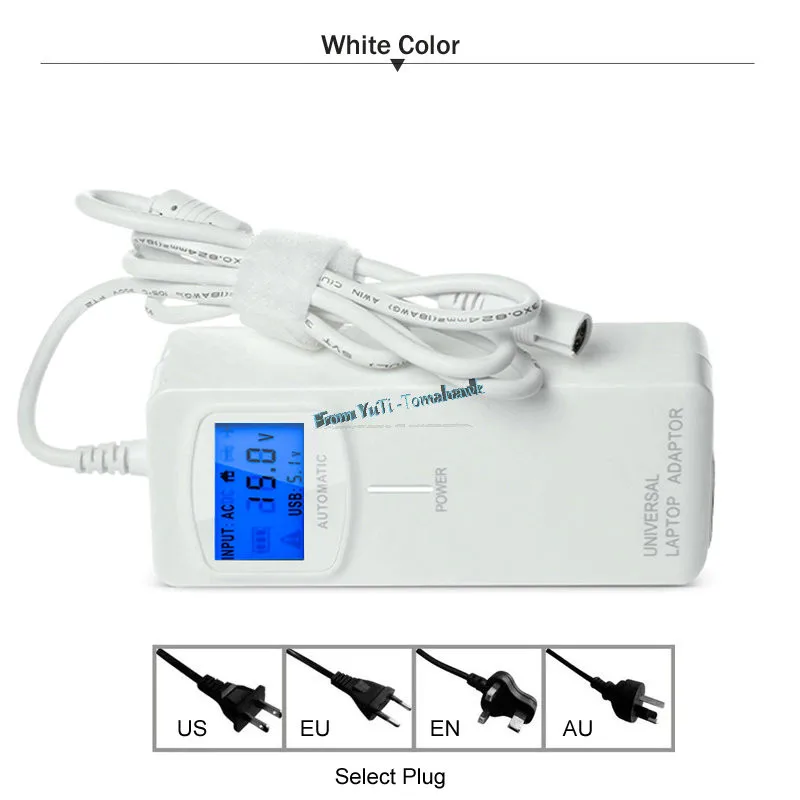

Color: White or Black (Please choose the colors, the default send black.)
Qverload and short circuit protection

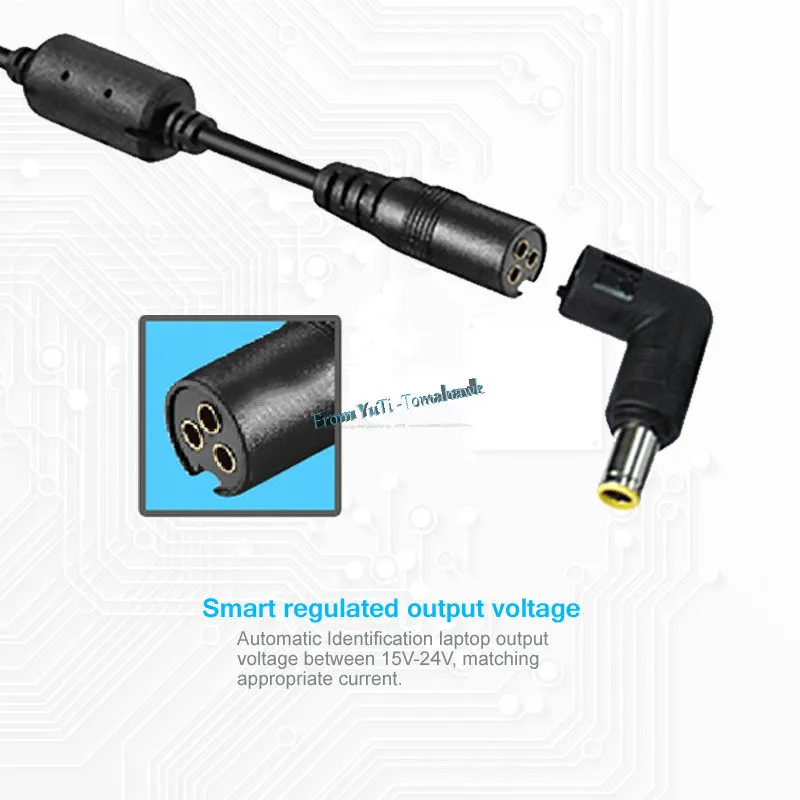

Smart regulated output voltage:
Automatic Identification laptop output voltage between 15V-24V, matching appropriate current.

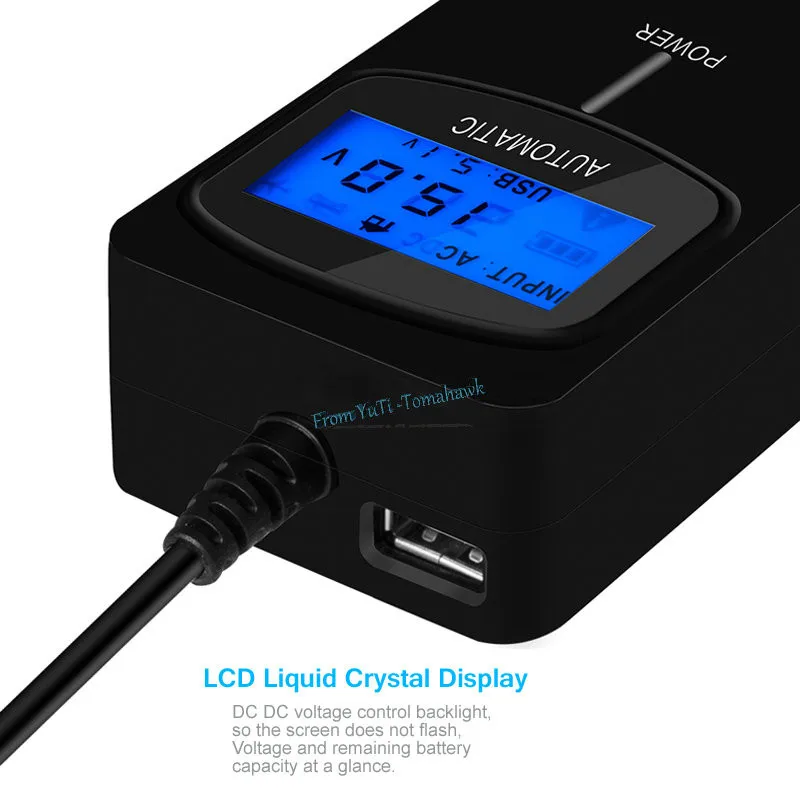

LCD Liquid Crystal Display:
DC DC voltage control backlight, so the screen does not flash,Voltage and remaining battery capacity at a glance.

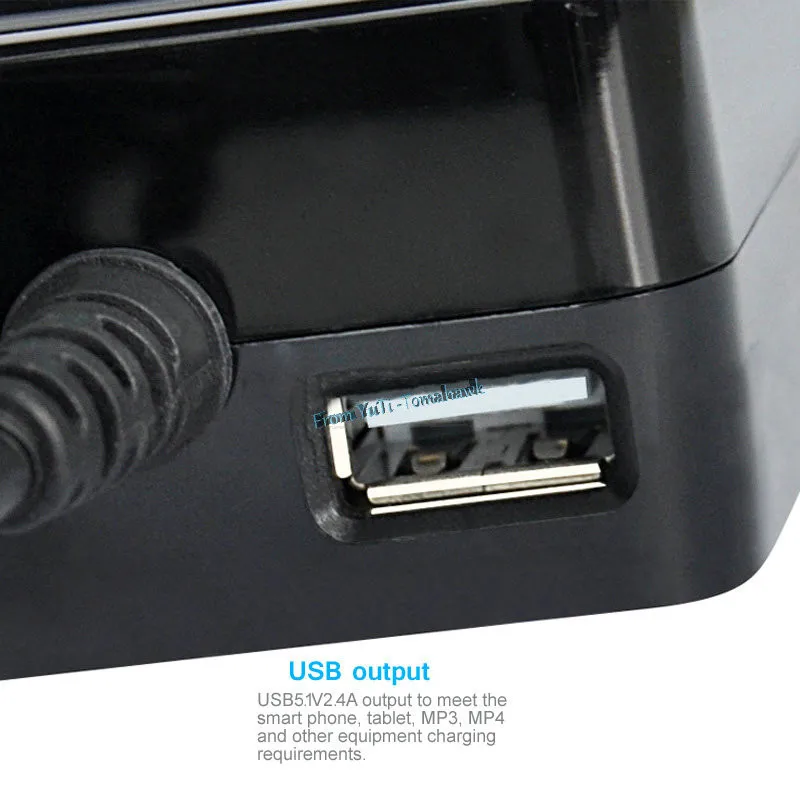

USB output:
USB5.1V 2.4A output to meet the smart phone, tablet, MP3, MP4 and other equipment charging requirements.

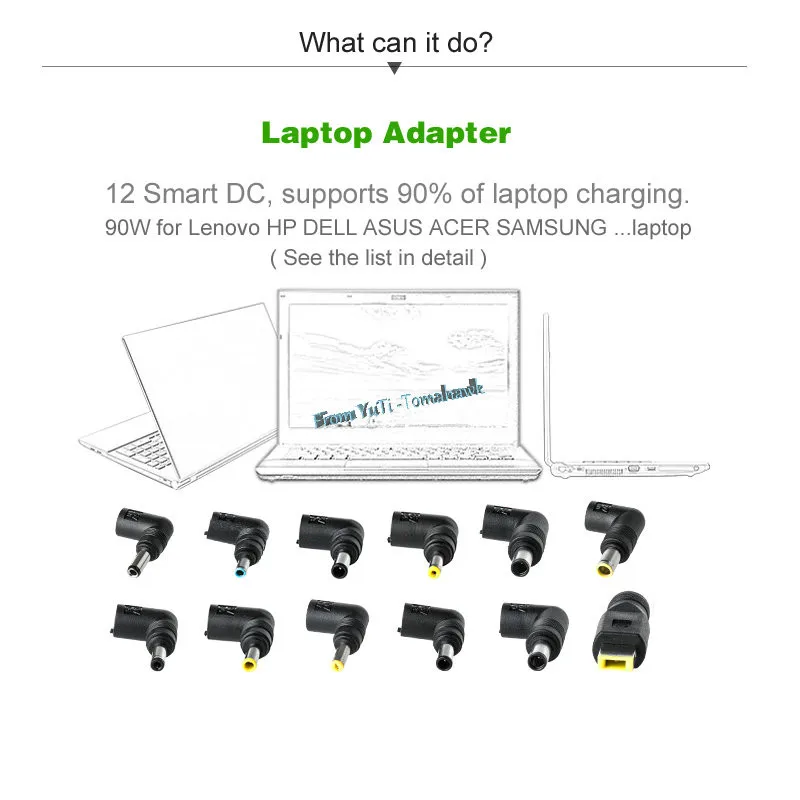

DC Connector: 12 pcs
DC tips can as your request to choose

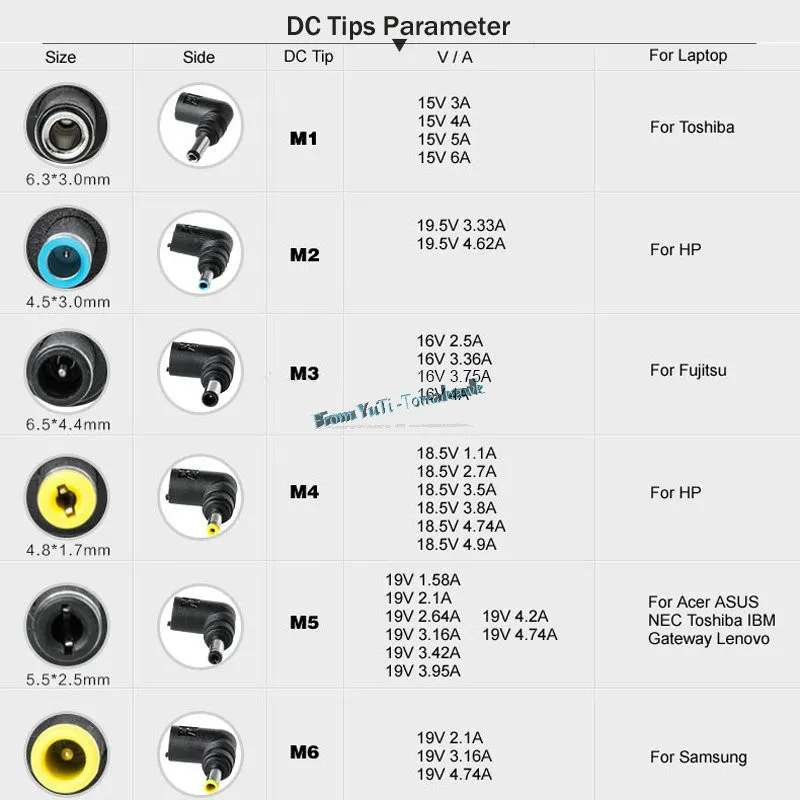

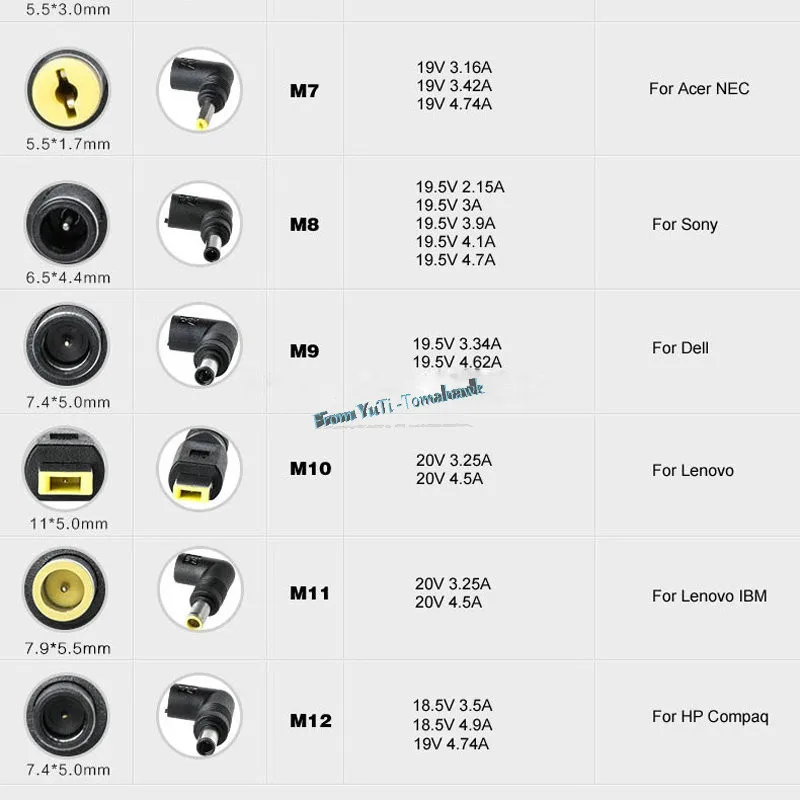

12 DC tip Connector Specification:
| M1 | 15V (90W Max) | Φ6.3*3.0mm | for TOSHIBA | 15V 3A , 15V 4A , 15V 5A , 15V 6A ; |
| for NEC | 15V 6A , etc | |||
| M2 | 19.5V(90W Max) | Φ4.5*3.0mm | for HP / Compaq | 19.5V 3.33A , 19.5V 4.62A , etc |
| M3 | 16V (90W Max) | Φ6.5*4.4mm | for Fujitsu | 16V 2.5A , 16V 3.36A , 16V 3.75A ; |
| for Sony | 16V 3.36A , 16V 3.75A , 16V 4A , etc | |||
| M4 | 18.5V (90W Max) | Φ4.8*1.7mm | for HP / Compaq | 18.5V 1.1A , 18.5V 2.7A , 18.5V 3.5A , 18.5V 3.8A , 18.5V 4.74A , 18.5V 4.9A , etc |
| M5 | 19V (90W Max) | Φ5.5*2.5mm | for Acer | 19V 3.42A , 19V 4.74A ; for ASUS 19V 3.42A , 19V 4.74A ; |
| for LITEON | 19V 3.16A , 19V 3.42A , 19V 4.74A ; | |||
| for Gateway | 19V 2.46A , 9V 3.16A , 19V 3.42A , 19V 4.74A ; | |||
| for Hasee | 19V 3.42A , 19V 4.74A ; | |||
| for TOSHIBA | 19V 1.58A , 19V 2.1A , 19V 3.42A , 19V 3.95A , 19V 4.74A ; | |||
| for NEC | 19V 4.74A ; | |||
| for Lenovo | 19V 4.74A ; | |||
| for IBM | 19V 3.16A , 19V 4.2A ; | |||
| M6 | 19V (90W Max) | Φ5.3*3.0mm | for SAMSUNG | 19V 2.1A , 19V 3.16A , 19V 4.74A , etc |
| M7 | 19V (90W Max) | Φ5.5*1.7mm | for Acer | 19V 3.16A , 19V 3.42A , 19V 4.74A ; |
| for LITEON | 19V 3.16A , 19V 3.42A , 19V 4.74A ; | |||
| for NEC | 19V 3.16A , etc | |||
| M8 | 19.5V (90W Max) | Φ6.5*4.4mm | for SONY | 19.5V 2.15A , 19.5V 3A , 19.5V 3.9A , 19.5V 4.1A , 19.5V 4.7A , etc |
| M9 | 19V (90W Max) | Φ7.4*5.0mm | for DELL | 19.5V 3.34A , 19.5V 4.62A , etc |
| M10 | 20V (90W Max) | 11*5.0mm rectangle | for Lenovo | 20V 3.25A , 20V 4.5A , etc |
| M11 | 20V (90W Max) | Φ7.9*5.5mm | for IBM / Lenovo | 20V 3.25A , 20V 4.5A , etc |
| M12 | 18.5V (90W Max) | Φ7.4*5.0mm | for HP / Compaq | 18.5V 3.5A , 18.5V 4.9A , 19V 4.74A , etc |
Usually on your old power adapter or bottom of the notebook computer has parameters, If you are unsure, please tell us the brand
and model of the laptop, we answer for you.
Requires attention:
1. Car cigarette lighter input 12V ( can'nt 24V )
2. Instantaneous voltage and current instability car startup, Do not use at startup, Wait vehicle stability before use.
3. Phone / mp3 / tablet charging cable , provide for oneself.
4. Alarm Indication: When the voltage is not normal or overload, the alarm exclamation point triangle logo will appear, disappear after normal use.
5. Do not use more than 90W on the device.
Power adapter knowledge and Q & A:
Q: What is the output voltage / current and power?
A: The laptop adapter label affixed, usually marked with a voltage / current and power parameters, the unit is voltage ” V “, the current unit is ” A “, for example: 20V4.5A, represents the voltage is ” 20V “, current is ” 4.5A“, This laptop adapter power is: 20V * 4.5A = ” 90W “.
Q: Fluctuation range of the output voltage is the number?
A: In accordance with industry standard laptop adapter output voltage fluctuation range of ± 5%, for example: 20V laptop adapter, its output voltage fluctuation range: between 19V-21V.
Q: My laptop adaper voltage is 19V, 18.5V adapter can use it?
A: Laptop adapter allows the 5% fluctuation, so the laptop can use the 18.05V-19.95V power adapter, 18.5V in this range, it can be used. But volatility can not exceed 5%, such as 19V can not be used 15V equipment .
Q: 4.74A compatible 2.1A?
A: Can support high current small current, 5A compatible 4/3/2/1A, 19.5V 4.74A compatible 19.5V 2.1A, not vice versa, a small current is not compatible with a large current, 19.5V 2.1A is not compatible 19.5V 4.74 A, because of lack of power, cause the device to not work properly.
Q: Why are there different DC tips connector?
A: Because each interface standard notebook computer manufacturers to use different, DC connector according to the outer diameter * inner diameter or length * width to distinguish.
Q: LCD display and DC connector voltage indicated why different?
A: Output voltage fluctuation range of ± 5%. For example: DC M11 labeled 20V, its output voltage fluctuation range is between 19V-21V, the display will show 19V or 20V, does not affect normal use. For example: DC M13 labeled 16V, its output voltage fluctuation range is between 15.2V-16.8V, the display will show 15V or 16V, does not affect normal use.
Q: What protection power adapter?
A: Mainly to prevent over-voltage / prevent over-current / prevent undervoltage / prevent the temperature is too high / protect against short circuits.
Q: Why not recommended laptop adapter on a bed / sofa?
A: Laptop adapter at work, some energy is converted into heat, heat dissipation through the housing, linens / sofa would be detrimental to the heat, and even lead to the laptop adapter starts overtemperature protection, is not conducive to the notebook adapter is working correctly.

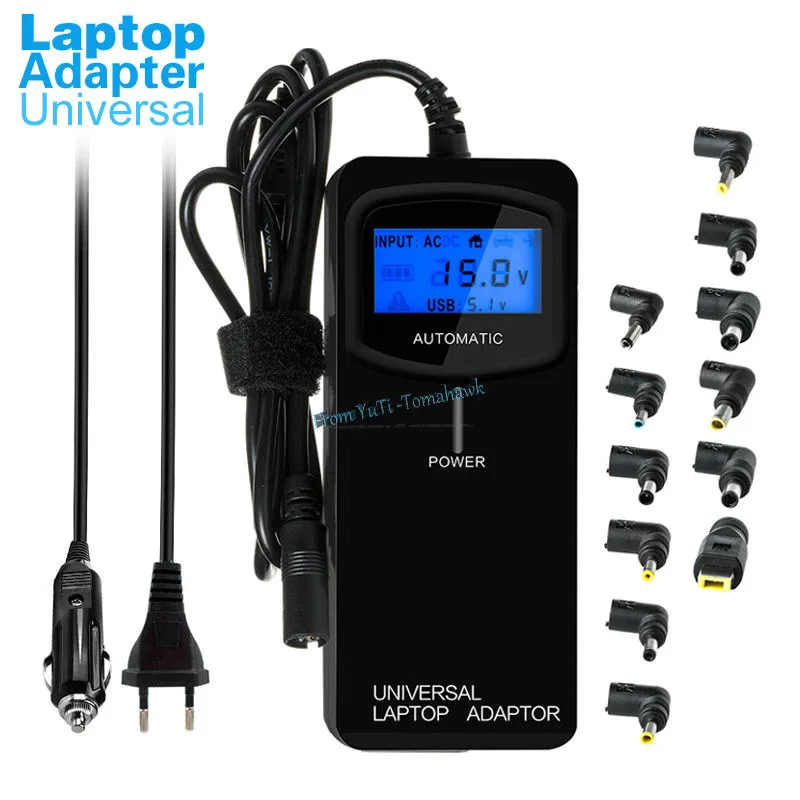

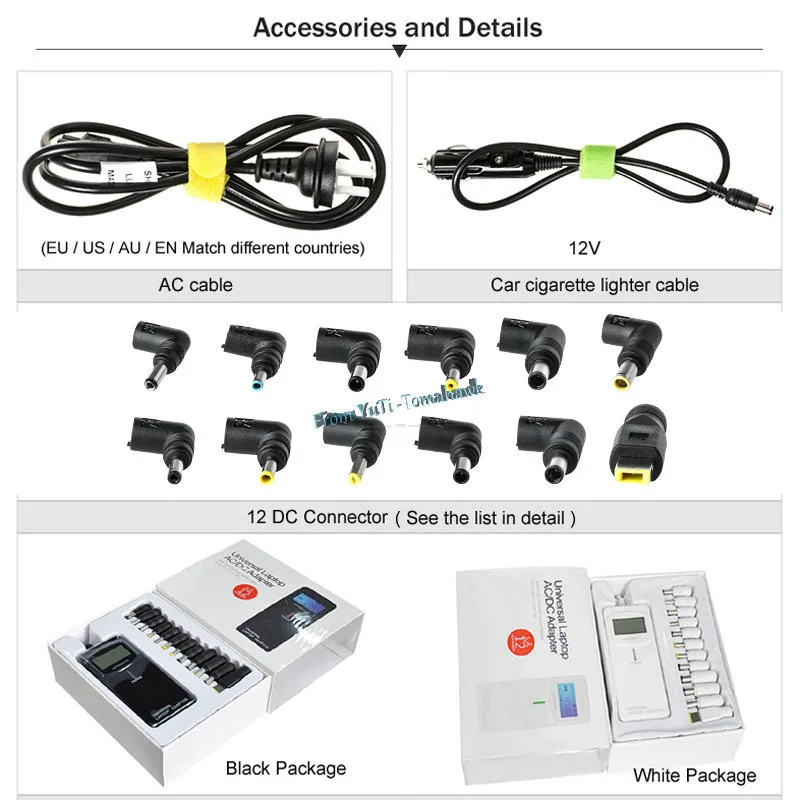

Packing list:
1 * 90W universal power adapter
1 * AC cable

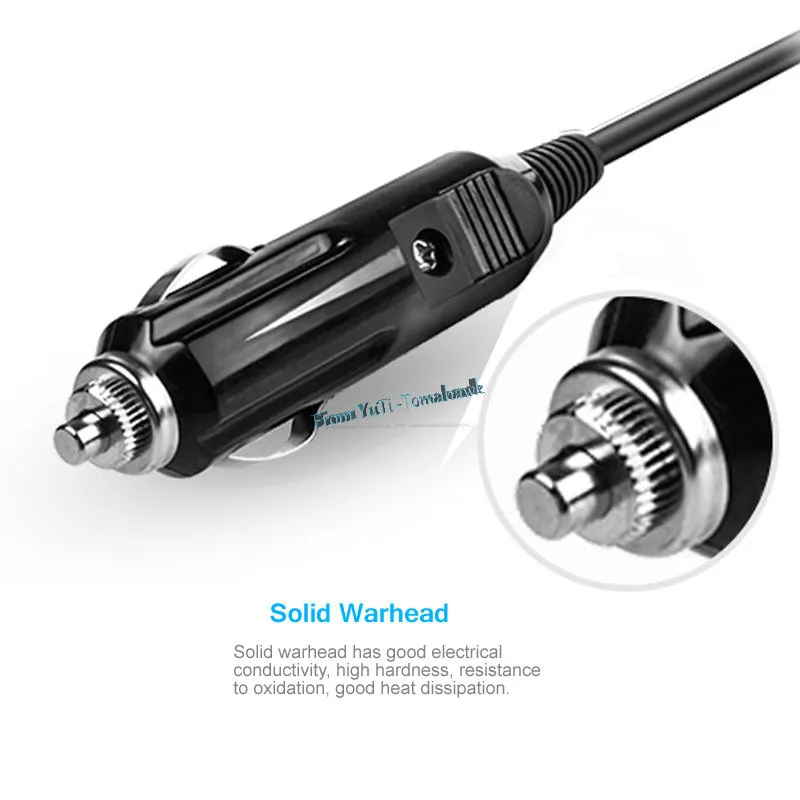

1 * 12V cigarette lighter cable
12 * DC (M1-M12)
Unit Type:
piece
Package Weight:
0.7kg (1.54lb.)

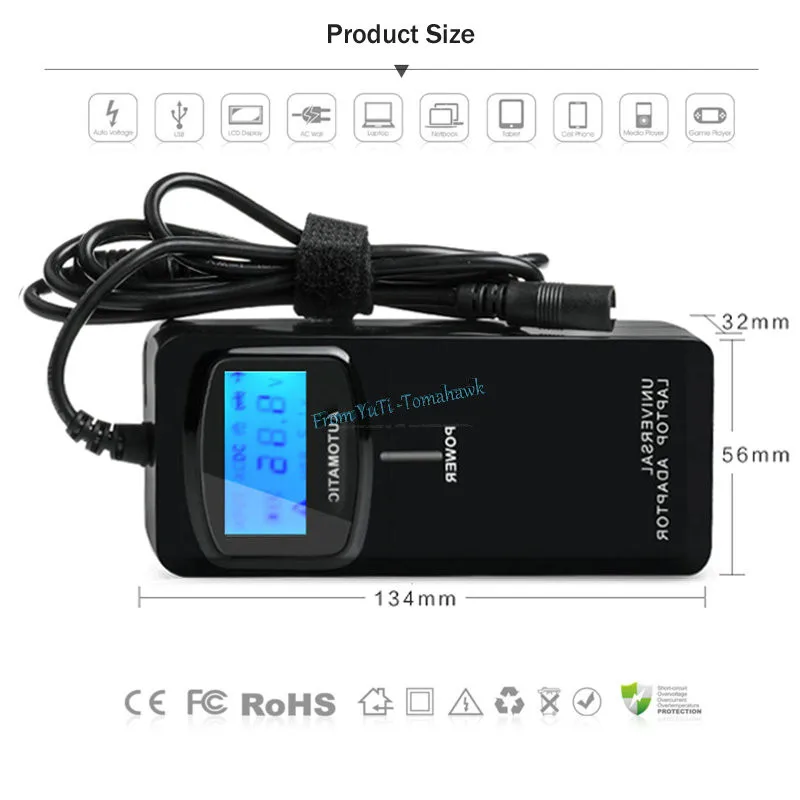

Package Size:
25cm x 15cm x 12cm (9.84in x 5.91in x 4.72in)
